MODEL：VA30-1125-3-L8
NET：2000KGS
Wood door working CNC machine / Three spindles / ATC Linear magazines- 8 tools / Three vacuum working zones / Five position pins / Wood working center / Drilling & Slotting & Cutting& Milling/ Door & Door Frame processing
Feature:
VA30-1125-3-L8 is a special wood door working CNC machine. It is equipped with three spindles, linear magazines, 8 tools. The middle spindle can change tools automatically, and do cutting, slotting and engraving work, two horizontal spindles can move on Z axis, do slotting and drilling on the side of panel. The table structure is Aluminum bars combined with vacuum pads which is used to fix door panel, with the positioning of 6 pins, the wood panel on the table can’t make any movement and guarantee accuracy.

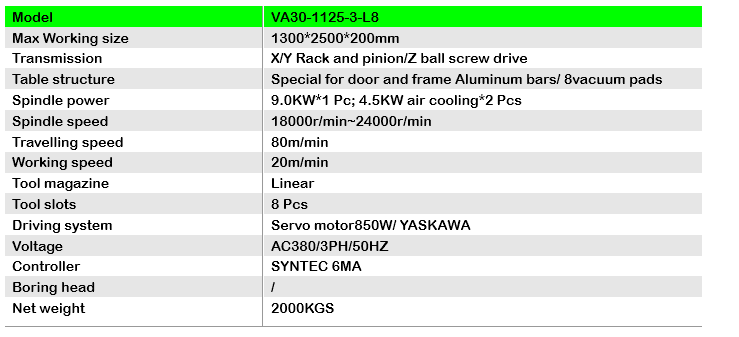

Parameter:
